Product Attributes
Model No.: P6KE6.8A
Brand: CY
Supply Type: Original Manufacturer
Reference Materials: Datasheet
Place Of Origin: China, Jiangsu China
Species: Led
Model: P6ke6.8aSupply Ability & Additional Information

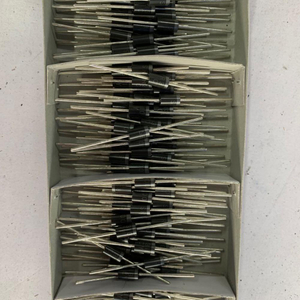

Packaging: Carton
Productivity: 5KK
Transportation: Ocean
Place of Origin: CHINA
Supply Ability: 5KK
Certificate: ISO9001
Port: shanghai
Payment Type: L/C,T/T
Incoterm: FOB

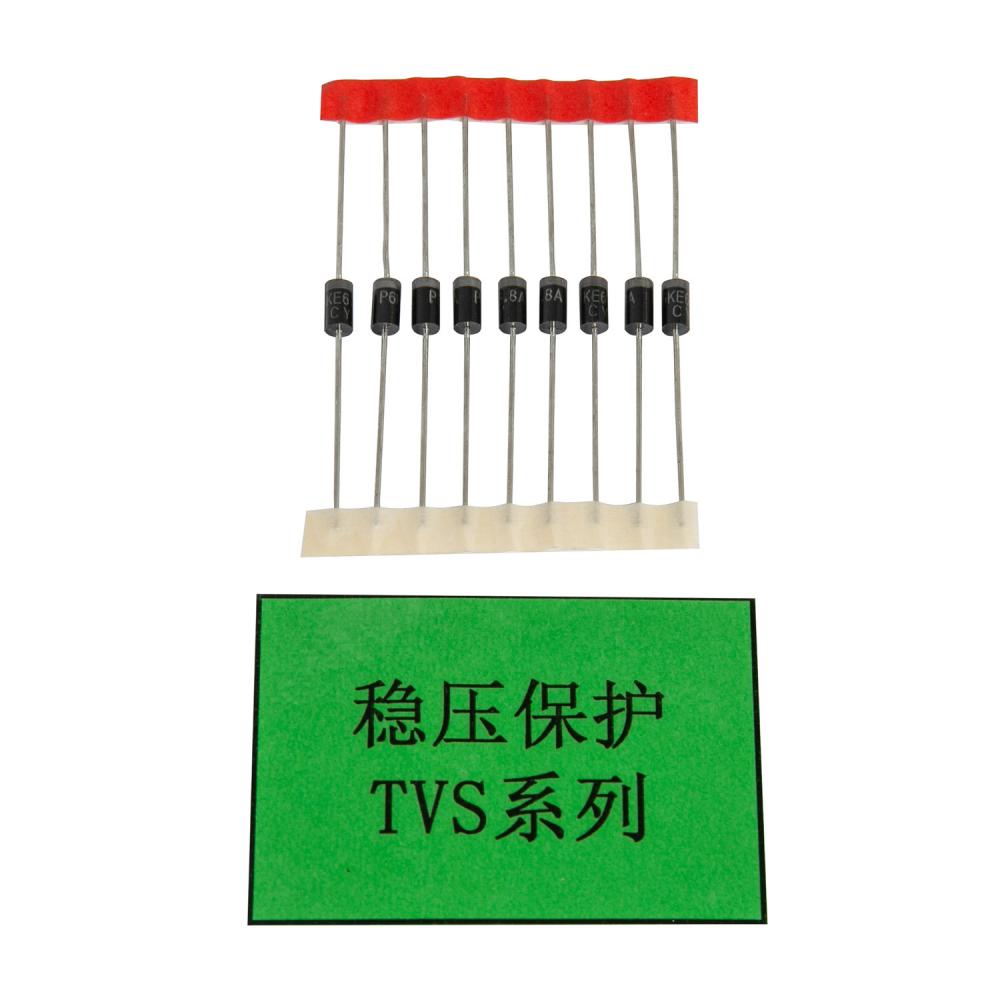

Transient Voltage Suppressor diodes
Transient voltage suppressor is a kind of diode type high efficiency protective device .when the two ploes of TVS DIODE are inpacted by the reverse transient high energy, It can effectively protect the precision components in the electronic circuit trom the damage of various surge pulses.

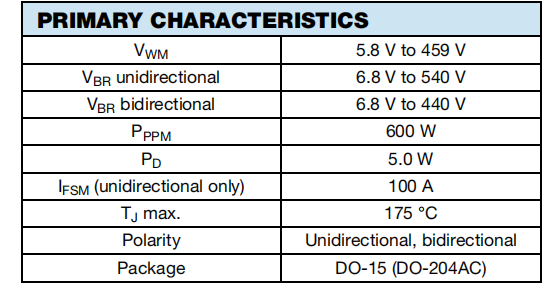

FEATURES
• Glass passivated chip junction
• Available in unidirectional and bidirectional
• 600 W peak pulse power capability with a
10/1000 μs waveform, repetitive rate (duty cycle): 0.01 %
• Excellent clamping capability
• Very fast response time
• Low incremental surge resistance
• Solder dip 275 °C max. 10 s, per JESD 22-B106
TYPICAL APPLICATIONS
Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting
on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.
MECHANICAL DATA
Case: DO-15 (DO-204AC)
Molded epoxy over passivated chip
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS compliant, commercial grade
Base P/NHE3 - RoHS compliant, AEC-Q101 qualified
Terminals: matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix
meets JESD 201 class 2 whisker test
Note
• P6KE250A to P6KE540A and P6KE250CA to P6KE440CA for
commercial grade only
Polarity: for unidirectional types the color band denotes
cathode end, no marking on bidirectional types
