SS56
CY
Model No.: SS56
Brand: CY
Supply Type: Original Manufacturer
Reference Materials: Datasheet
Place Of Origin: China
Species: Led, Schottky Diode
Package Type: Surface Mount
Productivity: 2KK
Transportation: Ocean,Air
Place of Origin: Changzhou,China
Certificate: ISO9001
Port: Shanghai
Payment Type: T/T
Incoterm: FOB,EXW
Selling Units:
Others

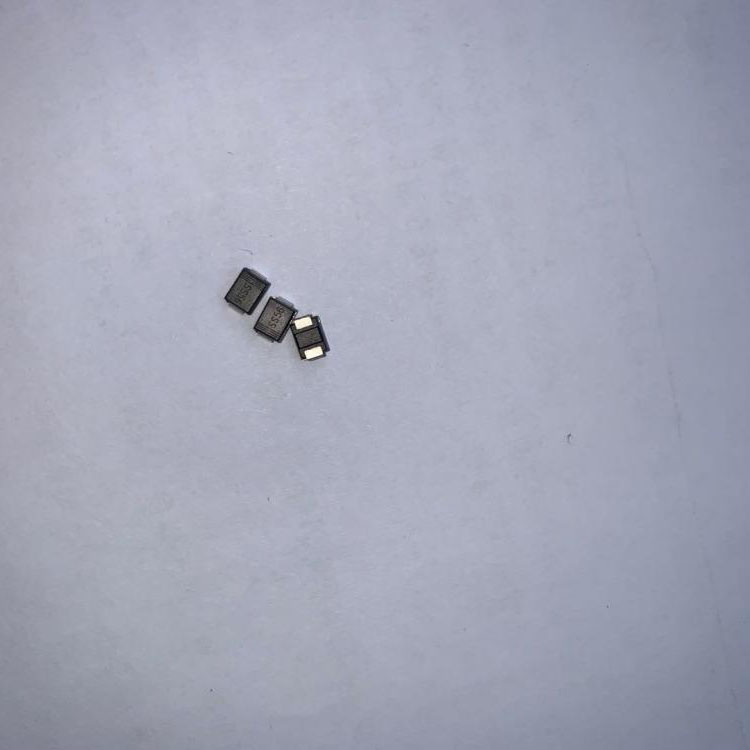

S56, Schottky Diode.SCHOTTKY diodes are characterized by low forward guide voltage and very short reverse recovery time of 10ns, suitable for high frequency work.SS56 working junction temperature: -50 to +125C
Electrical Characteristics
TYPE | Maximum Peak Reverse Voltage | Maximum Average Rectified Current | Maximum Peak Forward Surge Current | Maximum Forward Voltage | Maximum Reverse Current | Case Style | |
VRRM | IAV | IFSM | VF@IF | IR@TA=25ºC | |||
V | A | A | V | A | mA | ||
SS52 | 20 | 5 | 150 | 0.15 | 5 | 1 | SMC |
SS53 | 30 | 5 | 150 | 0.55 | 5 | 1 | SMC |
SS54 | 40 | 5 | 150 | 0.6 | 5 | 1 | SMC |
SS55 | 50 | 5 | 150 | 0.7 | 5 | 1 | SMC |
SS56 | 60 | 5 | 150 | 0.7 | 5 | 1 | SMC |
SS58 | 80 | 5 | 150 | 0.85 | 5 | 1 | SMC |
SS510 | 100 | 5 | 150 | 0.85 | 5 | 1 | SMC |
Box Packing Detail
Changzhou Changyuan Electronic Co.,Ltd
Professional and leading diode manufacturer in China with ROHS and ISO9001:2008 certification.
Products: silicon diode, switching diode, high efficiency diode, trigger diode, schottky diode, SMD diode, energy saving lamp diode and switching power supply diode.
Production capacity: 300KKpcs diodes per month.diodes inc
Top quality: OEM for Good-ark electronic, Star Sea electronic and cooperate with Pentium electrical, NVC, TCL, Honeywell Lonon etc.
