M7
CY
Model No.: M7
Brand: CY
Supply Type: Original Manufacturer
Reference Materials: Datasheet, Photo
Place Of Origin: China
Package Type: Surface Mount
Productivity: 2KK
Transportation: Ocean,Air,Express
Place of Origin: Changzhou,China
Supply Ability: 2KK
Certificate: ISO9000
Port: Shanghai
Payment Type: T/T
Incoterm: FOB,EXW
Selling Units:
Others

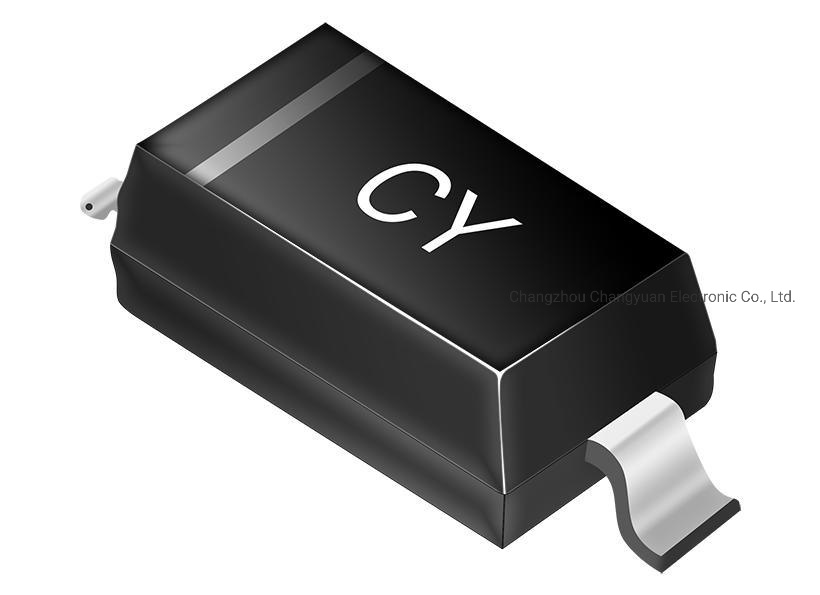

Product Display
Features
The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
For surface mounted applications
Low reverse leakage
Built-in strain relief,ideal for automated placement
High forward surge current capability
High temperature soldering guaranteed: 260 C/10 seconds at terminals
Electrical Characteristics
50V | 100V | 200V | 400V | 600V | 800V | 1000V | |
1A | M1 | M2 | M3 | M4 | M5 | M6 | M7 |
S1A | S1B | S1D | S1G | S1J | S1K | S1M | |
GS1A | GS1B | GS1D | GS1G | GS1J | GS1K | GS1M | |
2A | S2A | S2B | S2D | S2G | S2J | S2K | S2M |
GS2A | GS2B | GS2D | GS2G | GS2J | GS2K | GS2M | |
3A | S3A | S3B | S3D | S3G | S3J | S3K | S3M |
GS3A | GS3B | GS3D | GS3G | GS3J | GS3K | GS3M |

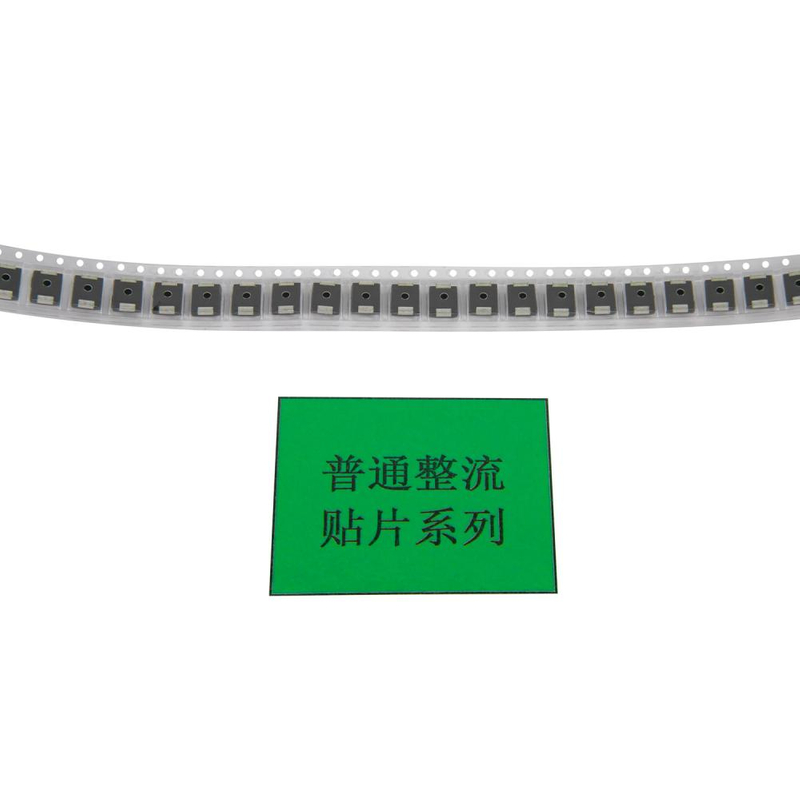

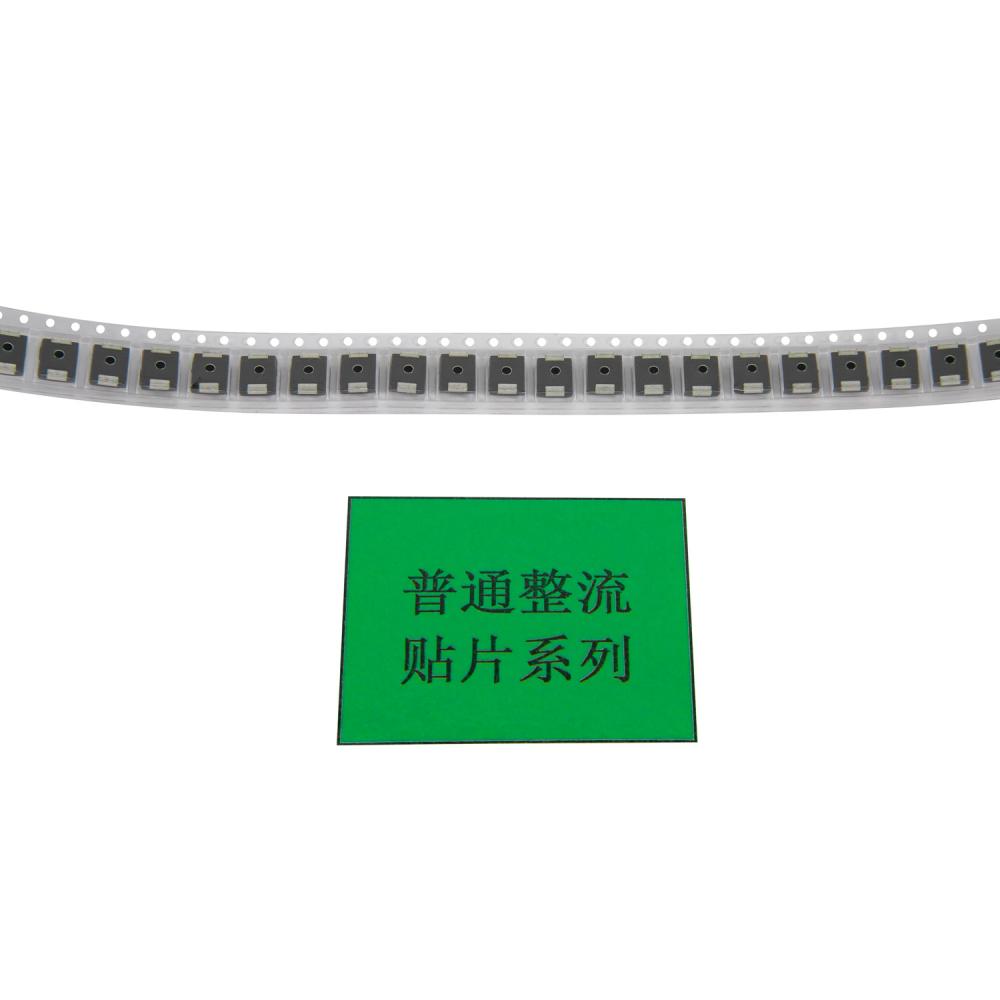

Tape&Box Packing Detail
Box QTY (pcs) | Box Size (mm) | Carton Size (mm) | Carton QTY (pcs) | Gross Weight (kg) | |
DO-41 | 5K | 255*80*140 | 430*280*310 | 50K | 17 |
DO-15 | 3K | 255*80*140 | 430*280*310 | 30K | 14 |
Do-27 | 1K | 255*80*140 | 430*280*310 | 10K | 16 |
R-6 | 500 | 255*80*140 | 430*280*310 | 5K | 12 |
Water Proof & Moisture Proof Packing
Changzhou Changyuan Electronic Co.,Ltd
Professional and leading diode manufacturer in China with ROHS and ISO9001:2008 certification.
Products: silicon diode, switching diode, high efficiency diode, trigger diode, Schottky Diode,
SMD diode, energy saving lamp diode and switching power supply diode.
Production capacity: 300KKpcs diodes per month.
Top quality: OEM for Good-ark electronic, Star Sea electronic and cooperate with Pentium electrical, NVC, TCL, Honeywell Lonon etc.
