MUR1600 MUR1610 MUR1620 MUR1630 MUR1640 MUR1660 MU
CY
Model No.: MUR1600 MUR1610 MUR1620 MUR1630 MUR1640 MUR1660 MU
Brand: CY
Supply Type: Original Manufacturer
Reference Materials: Datasheet
Place Of Origin: China
Species: Switching Diode, Rectifier Diode
Productivity: 3KK
Transportation: Ocean
Place of Origin: Changzhou,China
Certificate: ISO9000
Port: Shanghai
Payment Type: T/T
Incoterm: FOB,EXW
Selling Units:
Others

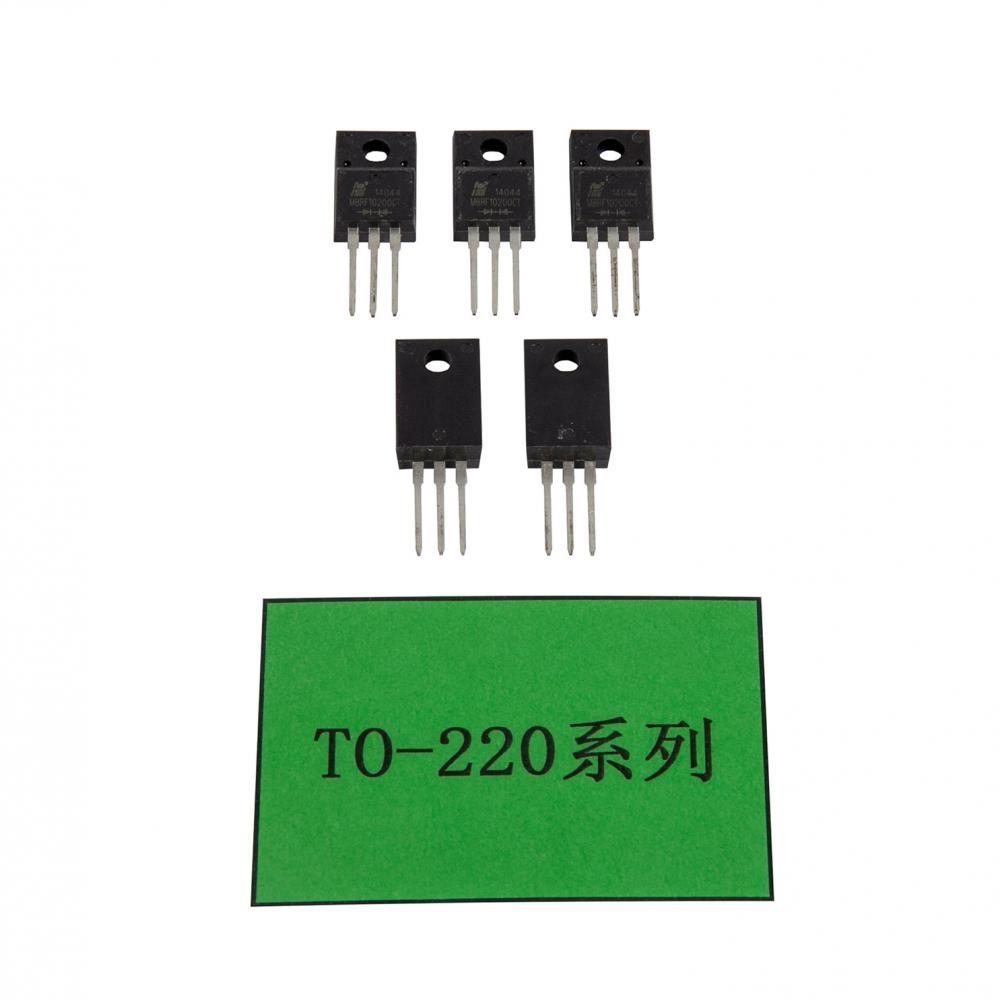

Ultra Fast Switching Rectifiers To-220
Features
The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
Ultra fast switching for high efficiency
Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed: 260 C/10 seconds,0.375"(9.5mm) lead length, 5 lbs. (2.3kg) tension
Electrical Characteristics
TYPE | Maximum Peak Reverse Voltage | Maximum Average Rectified Current | Maximum Peak Forward Surge Current | Maximum Forward Voltage | Maximum Reverse Current | Maximum Reverse Recovery Time | Case Style | |
VRRM | IAV | IFSM | VF@IF | IR@TA=25ºC | Trr | |||
V | A | A | V | A | μA | ns | ||
MUR1600 | 50 | 16 | 125 | 1 | 16 | 10 | 50 | TO-220AC |
MUR1610 | 100 | 16 | 125 | 1 | 16 | 10 | 50 | TO-220AC |
MUR1620 | 200 | 16 | 125 | 1 | 16 | 10 | 50 | TO-220AC |
MUR1630 | 300 | 16 | 125 | 1.3 | 16 | 10 | 50 | TO-220AC |
MUR1640 | 400 | 16 | 125 | 1.3 | 16 | 10 | 50 | TO-220AC |
MUR1660 | 600 | 16 | 125 | 1.7 | 16 | 10 | 100 | TO-220AC |
MUR1680 | 800 | 16 | 125 | 1.7 | 16 | 10 | 100 | TO-220AC |
Tape&Box Packing Detail
Package | QTY Per Box (pcs) | Inner Box Size (mm) | Carton Size (mm) | QTY Per Carton (pcs) | Gross Weight (kg) |
TO-22OAC | 2,000 | 555*145*95 | 575*306*218 | 8,000 | 22.16 |
Shipping Service
1. We will ship your order within 10-25 working days after the order confirmation.
2. We can ship via your DHL/UPS/Fedex account.
3. FOB/CIF/
Changzhou Changyuan Electronic Co.,Ltd
Professional and leading diode manufacturer in China with ROHS and ISO9001:2008 certification.
Products: silicon diode, switching diode, high efficiency diode, trigger diode, Schottky Diode,
SMD diode, energy saving lamp diode and switching power supply diode.
Production capacity: 300KKpcs diodes per month.
Top quality: OEM for Good-ark electronic, Star Sea electronic and cooperate with Pentium electrical, NVC, TCL, Honeywell Lonon etc.
