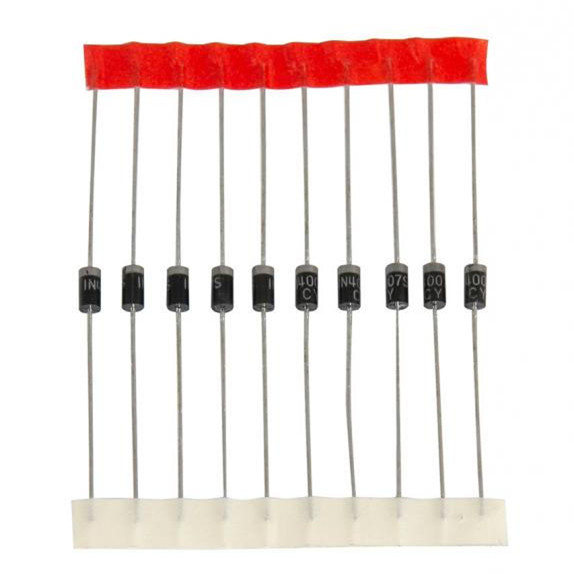

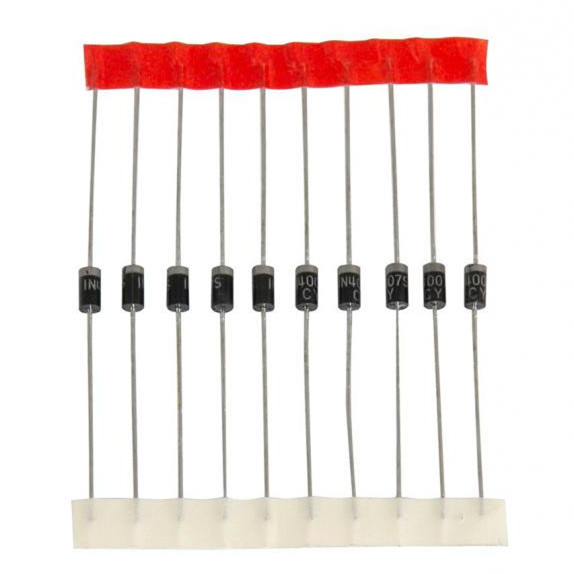

1N4007S
CY
Model No.: 1N4007S
Brand: CY
Supply Type: Original Manufacturer
Reference Materials: Datasheet
Place Of Origin: China
Species: Rectifier Diode
Packaging: BOX
Productivity: 3KK/Month
Transportation: Ocean,Air
Place of Origin: China
Supply Ability: 3KK/Month
Certificate: ISO9000
Port: Shanghai
Payment Type: L/C,T/T,D/P
Incoterm: FOB,EXW
Selling Units:
Others
Package Type:
BOX
General Purpose Rectifiers 1n4007s
Features
. Diffused junction
. Low Leakage
. Low forward voltage drop
. High current capability
. Easily cleaned with Freon, Alcohol, Lsopropanol and similar solvents
. The plastic material carries U/L recognition 94V-O
Mechanical Data
. Case: JEDEC DO-41 molded plastic
. Terminals: Axial leads Solderable per MIL-STD-750 Method 2026
. Polarity: Color band denotes cathode
. Weight: 0.012 ounce. 0.33grams
. Mounting position: Any
Electrical characteristics
Symbol | 1N4001 | 1N4002 | 1N4003 | 1N4004 | 1N4005 | 1N4006 | 1N4007 | 1N4007* | Units | |
Max Reverse Voltage | Vrrm | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | 1200 | V |
Max Forward Current | Iav | 1 | A | |||||||
Max Forward Voltage | Vf | 1 | V | |||||||
Max Reverse Current | Ir | 5 | μA |
ape&Box Packing
Package | Box QTY (pcs) | Tape Size (mm) | Box Size (mm) | Carton Size (mm) | Carton QTY (pcs) | Gross Weight (kg) |
DO-41 | 5000 | 52 | 255*80*140 | 430*280*310 | 50000 | 17 |
DO-15 | 3000 | 52 | 255*80*140 | 430*280*310 | 30000 | 14 |
Do-27 | 1000 | 52 | 255*80*140 | 430*280*310 | 10000 | 12 |
R-6 | 500 | 52 | 255*80*140 | 430*280*350 | 5000 | 11 |
Packing Photo
Changzhou Changyuan Electronic Co.,Ltd
Professional and leading diode manufacturer in China with ROHS and ISO9001:2008 certification.
Products: silicon diode, switching diode, high efficiency diode, trigger diode, Schottky Diode,
SMD diode, energy saving lamp diode and switching power supply diode.
Production capacity: 300,000,000 pieces of diodes per month.
