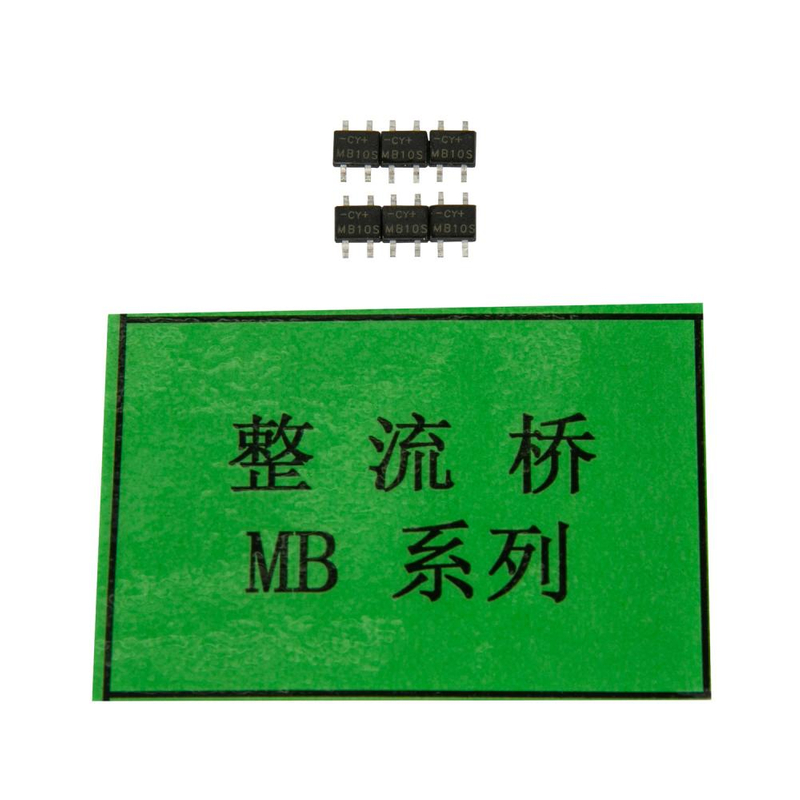

Using the unidirectional conductivity of the rectifier diode and a certain circuit connection (half wave or full wave rectifier), the polarity and the instantaneous value of the alternating current for periodic changes, into the instantaneous value, although with the change of time, but the polarity of the one-way pulsating electricity.The MB family of Bridge rectifiers is a 0.5 A rectifier family that achieves high surge current absorption within a very small foot print. Within its small 35 mm2 form factor, the MB family shines in its surge capability. In order to absorb high surge currents, the design supports a 35 A IFSM rating and a 5.0 A2Sec I2T rating. Devices in the family are also rated to breakdown voltages of up to 1000 V. These features make the MB family ideal for small power supplies that need a little extra surge capability.
Features
Low-Leakage
Surge Overload Rating: 35 A Peak
Ideal for Printed Circuit Board
UL Certified: UL #E258596
Applications
This product is general usage and suitable for many different applications.
