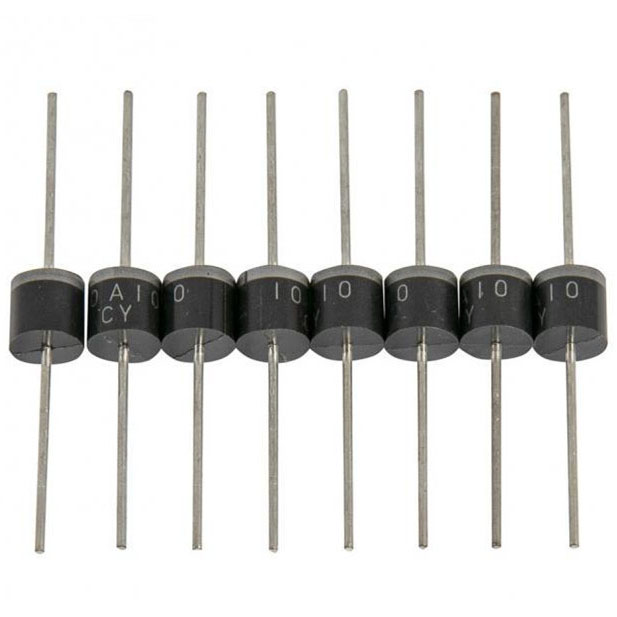

10A10
CY
Model No.: 10A10
Brand: CY
Supply Type: Original Manufacturer
Reference Materials: Datasheet
Place Of Origin: China
Species: Rectifier Diode
Productivity: 2KK
Transportation: Ocean,Air
Place of Origin: Changzhou,China
Supply Ability: 2KK
Certificate: ISO9001
Port: Shanghai
Payment Type: T/T
Incoterm: FOB,EXW
Selling Units:
Others
General Rectifiers10A10 Electronic Component
Features
·The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
·Construction utilizes void-free molded plastic technique
·Low reverse leakage
·High forward surge current capability
·High temperature soldering guaranteed: 260 C/10 seconds,0.375"(9.5mm) lead length, 5 lbs. (2.3kg) tension
Mechanical Data

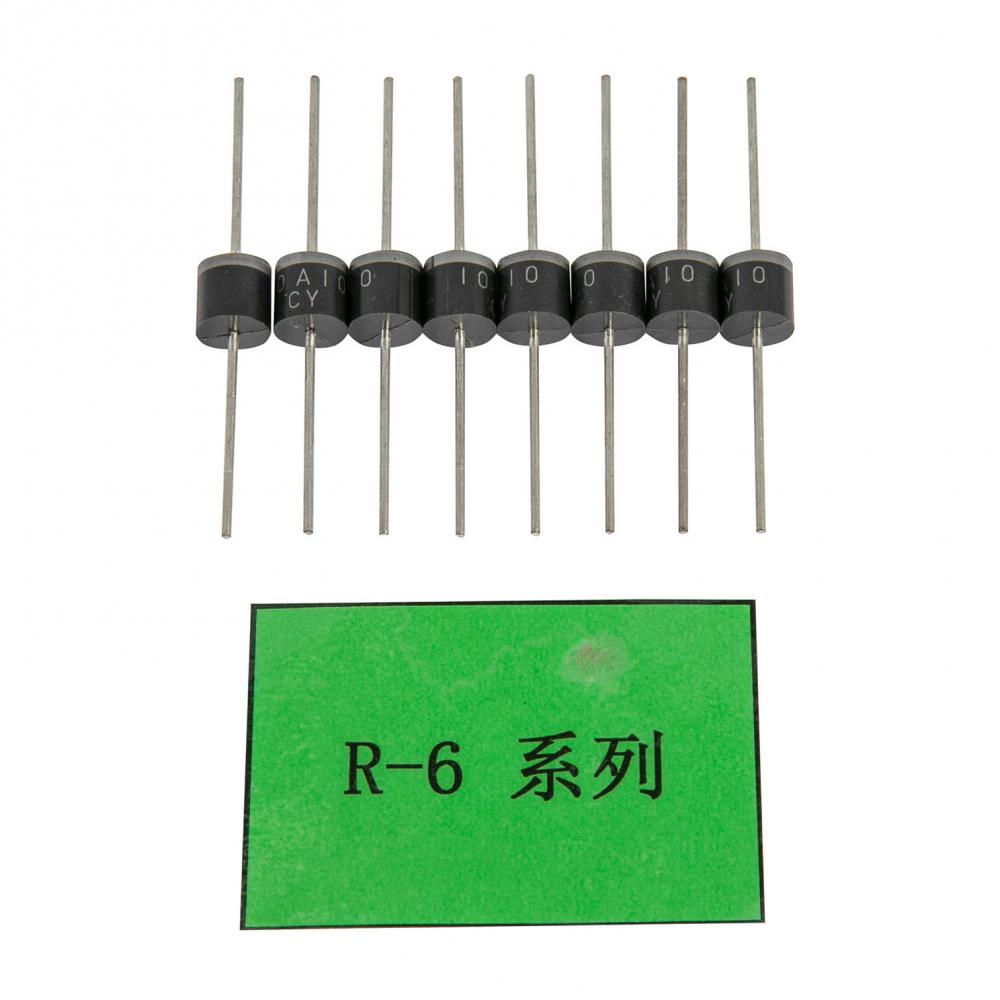

. Case: JEDEC R-6. molded plastic
. Terminals: Axial leads. Solderable per MIL-STD-202.Method 208
. Polarity: Color band denotes cathode
. Weight: 0.074 ounce. 2.1 grams
. Mounting position: Any
Electrical Characteristics
Symbol | 10A05 | 10A1 | 10A2 | 10A4 | 10A6 | 10A8 | 10A10 | Units | |
Max Reverse Voltage | Vrrm | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
Max Forward Current | Iav | 10 | A | ||||||
Max Forward Voltage | Vf | 1 | V | ||||||
Max Reverse Current | Ir | 10 | μA |
Tape&Box Packing
Package | Box QTY (pcs) | Tape Size (mm) | Box Size (mm) | Carton Size (mm) | Carton QTY (pcs) | Gross Weight (kg) |
DO-41 | 5000 | 52 | 255*80*140 | 430*280*310 | 50000 | 17 |
DO-15 | 3000 | 52 | 255*80*140 | 430*280*310 | 30000 | 14 |
Do-27 | 1000 | 52 | 255*80*140 | 430*280*310 | 10000 | 12 |
R-6 | 500 | 52 | 255*80*140 | 430*280*350 | 5000 | 11 |
Changzhou Changyuan Electronic Co.,Ltd
Professional and leading diode manufacturer in China with ROHS and ISO9001:2008 certification.
Products: silicon diode, switching diode, high efficiency diode, trigger diode, Schottky Diode,
SMD diode, energy saving lamp diode and switching power supply diode.
Production capacity: 300,000,000 pieces of diodes per month.
Top quality: OEM for Good-ark electronic, Star Sea electronic and cooperate with Pentium electrical, NVC, TCL, Honeywell Lonon etc.
